Optimizing SQL (and DataFrames) in DataFusion: Part 2

By Andrew Lamb / Mustafa Akur / Developer
Apr 03, 2025

Part 2: Optimizers in Apache DataFusion

In the first part of this post, we discussed what a Query Optimizer is and what role it plays and described how industrial optimizers are organized. In this second post, we describe various optimizations found in Apache DataFusion and other industrial systems in more detail.

DataFusion contains high-quality, full-featured implementations for Always Optimizations and Engine Specific Optimizations (defined in Part 1). Optimizers are implemented as rewrites of LogicalPlan in the logical optimizer or rewrites of ExecutionPlan in the physical optimizer. This design means the same optimizer passes are applied for SQL and DataFrame queries, as well as plans for other query language frontends such as InfluxQL in InfluxDB 3.0, PromQL in Greptime, and Vega in VegaFusion.

Always optimizations

Some optimizations are so important they are found in almost all query engines and are typically the first implemented as they provide the largest cost-benefit ratio (and performance is terrible without them).

Predicate/Filter Pushdown

Why: Avoids carrying unneeded rows as soon as possible.

What: Moves filters “down” in the plan so they run earlier in execution, as shown in Figure 1.

Example Implementations: DataFusion, DuckDB, ClickHouse

The earlier data is filtered out in the plan, the less work the rest of the plan has to do. Most mature databases aggressively use filter pushdown/early filtering combined with techniques such as partition and storage pruning (e.g., Parquet Row Group pruning) for performance.

An extreme and somewhat contrived example query:

SELECT city, COUNT(*) FROM population GROUP BY city HAVING city = ‘BOSTON’;
Copy

Semantically, HAVING is evaluated after GROUP BY in SQL. However, computing the population of all cities and discarding everything except Boston is much slower than computing only the population for Boston, so most Query Optimizers will evaluate the filter before the aggregation.

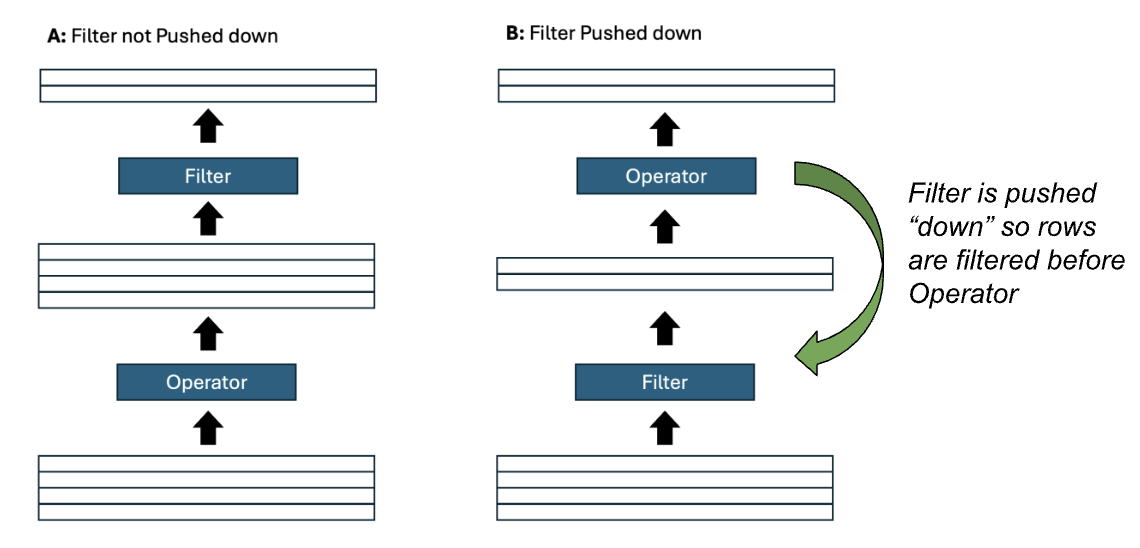

Figure 1: Filter Pushdown. In (A), without filter pushdown, the operator processes more rows, reducing efficiency. In (B) with filter pushdown, the operator receives fewer rows, resulting in less overall work and a faster and more efficient query.

Projection pushdown

Why: Avoids carrying unneeded columns as soon as possible.

What: Pushes “projection” (keeping only certain columns) earlier in the plan, as shown in Figure 2.

Example Implementations: DataFusion, DuckDB, ClickHouse

Similarly to the motivation for Filter Pushdown, the earlier the plan stops doing something, the less work it does overall and the faster it runs. For Projection Pushdown, if columns are not needed later in a plan, copying the data to the output of other operators is unnecessary and the costs of copying can add up. For example, in Figure 3 of Part 1, the species column is only needed to evaluate the filter within the scan and notes are never used, so copying them through the rest of the plan is unnecessary.

Projection Pushdown is especially effective and important for column store databases, where the storage format itself (such as Apache Parquet) supports efficiently reading only a subset of required columns. It is especially powerful in combination with filter pushdown. Projection Pushdown is still important but less effective for row-oriented formats such as JSON or CSV, where each column in each row must be parsed even if it is not used in the plan.

Figure 2: In (A), without projection pushdown, the operator receives more columns, reducing efficiency. In (B), with projection pushdown, the operator receives fewer columns, leading to optimized execution.

Limit Pushdown

Why: The earlier the plan stops generating data, the less overall work it does, and some operators have more efficient limited implementations.

What: Pushes limits (maximum row counts) down in a plan as early as possible.

Example Implementations: DataFusion, DuckDB, ClickHouse, Spark (Window and Projection)

Often, queries have a LIMIT or other clause that allows them to stop generating results early, so the sooner they can stop execution, the more efficiently they will execute.

In addition, DataFusion and other systems have more efficient implementations of some operators that can be used if there is a limit. The classic example is replacing a full sort + limit with a TopK operator that only tracks the top values using a heap. Similarly, DataFusion’s Parquet reader stops fetching and opening additional files once the limit is hit. Figure 3: In (A), without limit pushdown, all data is sorted and everything except the first few rows are discarded. In (B), with limit pushdown, Sort is replaced with TopK operator which does much less work.

Expression Simplification / Constant Folding

Why: Evaluating the same expression for each row when the value doesn’t change is wasteful

What: Partially evaluates and/or algebraically simplifies expressions

Example Implementations: DataFusion, DuckDB (has several rules such as constant folding, and comparison simplification), Spark

If an expression doesn’t change from row to row, it is better to evaluate it once during planning. This is a classic compiler technique used in database systems.

For example, given a query that finds all values from the current year:

SELECT … WHERE extract(year from time_column) = extract(year from now())
Copy

Evaluating extract(year from now()) on every row is much more expensive than evaluating it once during planning time, so the query becomes a constant.

SELECT … WHERE extract(year from time_column) = 2025
Copy

Furthermore, it is often possible to push such predicates into scans.

Rewriting OUTER JOIN → INNER JOIN

Why: INNER JOIN implementations are almost always faster (as they are simpler) than OUTER JOIN implementations. INNER JOINs impose fewer restrictions on other optimizer passes (such as join reordering and additional filter pushdown).

What: In cases where null rows introduced by an OUTER JOIN will not appear in the results, it can be rewritten to an INNER JOIN.

Example Implementations: DataFusion, Spark, ClickHouse.

For example, given a query such as the following:

SELECT …
FROM orders LEFT OUTER JOIN customer ON (orders.cid = customer.id)
WHERE customer.last_name = ‘Lamb’
Copy

The LEFT OUTER JOIN keeps all rows in orders that don’t have a matching customer but fills in the fields with null. All such rows will be filtered out by customer.last_name = ‘Lamb’ and thus an INNER JOIN produces the same answer. This is illustrated in Figure 4.

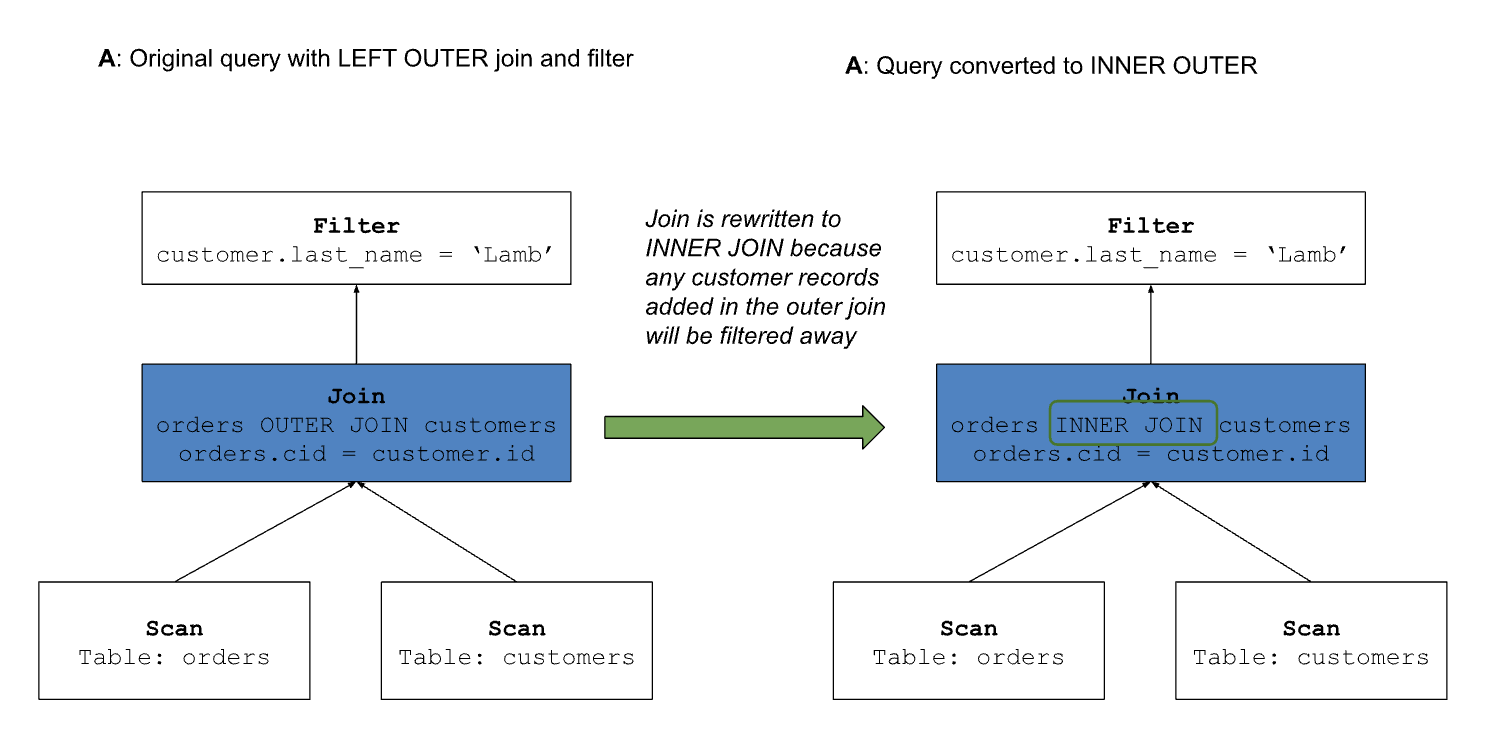

Figure 4: Rewriting OUTER JOIN to INNER JOIN. In (A), the original query contains an OUTER JOIN and a filter on customer.last_name, which filters out all rows that might be introduced by the OUTER JOIN. In (B), the OUTER JOIN is converted to inner join and a more efficient implementation can be used.

Engine specific optimizations

As discussed in Part 1 of this blog, optimizers also contain a set of passes that are still always good to do but are closely tied to the specifics of the query engine. This section describes some common types

Subquery Rewrites

Why: Implementing subqueries by running a query for each row of the outer query is very expensive.

What: It is possible to rewrite subqueries as joins, which often perform much better.

Example Implementations: DataFusion (one, two, three), Spark

Evaluating subqueries a row at a time is so expensive that execution engines in high-performance analytic systems such as DataFusion and Vertica may not support row-at-a-time evaluation, given how terrible the performance would be. Instead, analytic systems rewrite such queries into joins, which can perform 100s or 1000s of times faster for large datasets. However, transforming subqueries to joins requires “exotic” join semantics such as SEMI JOIN, ANTI JOIN, and variations on how to treat equality with null¹.

For a simple example, consider a query like this:

SELECT customer.name
FROM customer
WHERE (SELECT sum(value)
       FROM orders WHERE
       orders.cid = customer.id) > 10;
Copy

This can be rewritten into:

SELECT customer.name
FROM customer
JOIN (
  SELECT customer.id as cid_inner, sum(value) s
  FROM orders
  GROUP BY customer.id
 ) ON (customer.id = cid_inner AND s > 10);
Copy

We don’t have space to detail this transformation or explain why it is so much faster to run but using it and many other transformations allows efficient subquery evaluation.

Optimized expression evaluation

Why: The capabilities of expression evaluation vary from system to system.

What: Optimize expression evaluation for the particular execution environment.

Example Implementations: There are many examples of these type of optimizations, including DataFusion’s Common Subexpression Elimination, unwrap_cast, and identifying equality join predicates. DuckDB rewrites IN clauses, and SUM expressions. Spark also unwraps casts in binary comparisons and adds special runtime filters.

To give a specific example of what DataFusion’s common subexpression elimination does, consider this query that refers to a complex expression multiple times:

SELECT date_bin('1 hour', time, '1970-01-01')
FROM table
WHERE date_bin('1 hour', time, '1970-01-01') >= '2025-01-01 00:00:00'
ORDER BY date_bin('1 hour', time, '1970-01-01')
Copy

Evaluating date_bin('1 hour', time, '1970-01-01') each time it is encountered is inefficient compared to calculating its result once and reusing that result when it is encountered again (similar to caching). This reuse is called Common Subexpression Elimination.

Some execution engines implement this optimization internally to their expression evaluation engine, but DataFusion represents it explicitly using a separate Projection plan node, as illustrated in Figure 5. Effectively, the query above is rewritten to the following:

SELECT time_chunk
FROM(SELECT date_bin('1 hour', time, '1970-01-01') as time_chunk
     FROM table)
WHERE time_chunk >= '2025-01-01 00:00:00'
ORDER BY time_chunk
Copy

Figure 5: Adding a Projection to evaluate common complex subexpression decreases complexity for subsequent stages.

Algorithm Selection

Why: Different engines have different specialized operators for certain operations.

What: Selects specific implementations from the available operators based on properties of the query.

Example Implementations: DataFusion’s EnforceSorting pass uses sort-optimized implementations, Spark’s rewrite useS a special operator for ASOF joins, and ClickHouse’sjoin algorithm selection (such as when to use MergeJoin)

For example, DataFusion uses a TopK (source) operator rather than a full Sort if there is also a limit on the query. Similarly, it may choose to use the more efficient PartialOrdered grouping operation when the data is sorted on group keys or a MergeJoin. Figure 6: An example of a specialized operation for grouping. In (A), input data has no specified ordering, and DataFusion uses a hashing-based grouping operator (source) to determine distinct groups. In (B), when the input data is ordered by the group keys, DataFusion uses a specialized grouping operator (source) to find boundaries that separate groups.

Using Statistics Directly

Why: Using pre-computed statistics from a table, without actually reading or opening files, is much faster than processing data.

What: Replace calculations on data with the value from statistics.

Example Implementations: DataFusion, DuckDB

Some queries, such as the classic COUNT(*) from my_table used for data exploration, can be answered using statistics only. Optimizers often have access to statistics for other reasons (such as Access Path and Join Order Selection) and statistics are commonly stored in analytic file formats. For example, the Metadata of Apache Parquet files stores MIN, MAX, and COUNT​ information. Figure 7: When the aggregation result is already stored in the statistics, the query can be evaluated using the values from statistics without looking at any compressed data. The Optimizer replaces the Aggregation operation with values from statistics.

Access path and join order selection

Overview

Last but certainly not least are optimizations that choose between plans with potentially (very) different performance. The major options in this category are:

1. Join Order: In what order should tables be combined using JOINs?
2. Access Paths: Which copy of the data or index should be read to find matching tuples?
3. Materialized View: Can the query can be rewritten to use a materialized view (partially computed query results)? This topic deserves its own blog (or book); we don’t discuss it further here. Figure 8: Access Path and Join Order Selection Query Optimizers. Optimizers use heuristics to enumerate some subset of potential join orders (shape) and access paths (color). The plan with the lowest estimated cost is chosen according to some cost model. In this case, Plan 2, with a cost of 180,000, is chosen for execution as it has the lowest estimated cost.

This class of optimizations is a hard problem for at least the following reasons:

1. Exponential Search Space: The number of potential plans increases exponentially as the number of joins and indexes increases.
2. Performance Sensitivity: Often, different plans that are very similar in structure perform very differently. For example, swapping the input order to a hash join can result in 1000x or more (yes, thousandfold!) run time differences.
3. Cardinality Estimation Errors: Determining the optimal plan relies on cardinality estimates (e.g., how many rows will come out of each join). Estimating this cardinality is a known hard problem, and in practice, queries with as few as three joins often have large cardinality estimation errors.

Heuristics and Cost-Based Optimization

Industrial optimizers handle these problems using a combination of:

1. Heuristics: Prune the search space and avoid considering plans that are (almost) never good. Examples include considering left-deep trees or using Foreign Key / Primary Key relationships to pick the build size of a hash join.
2. Cost Model: Given the smaller set of candidate plans, the Optimizer then estimates their cost and picks the one using the lowest cost.

For some examples, you can read about Spark’s cost-based optimizer or look at the code for DataFusion’s join selection and DuckDB’s cost model and join-order enumeration.

However, the use of heuristics and (imprecise) cost models means optimizers must:

1. Make deep assumptions about the execution environment: For example, the heuristics often include assumptions that joins implement sideways information passing (RuntimeFilters) or that Join operators always preserve a particular input.
2. Use one particular objective function: There are almost always trade-offs between desirable plan properties, such as execution speed, memory use, and robustness in the face of cardinality estimation. Industrial optimizers typically have one cost function, which attempts to balance between the properties or a series of hard-to-use indirect tuning knobs to control the behavior.
3. Require statistics: Typically cost models require up-to-date statistics, which can be expensive to compute, must be kept up to date as new data arrives, and often have trouble capturing the nonuniformity of real-world datasets.

Join Ordering in DataFusion

DataFusion purposely does not include a sophisticated cost-based optimizer. Instead, in keeping with its design goals it provides a reasonable default implementation along with extension points to customize behavior.

Specifically, DataFusion includes:

1. “Syntactic Optimizer” (joins in the order listed in the query²) with basic join reordering (source) to prevent join disasters
2. Support for ColumnStatistics and Table Statistics
3. The framework for filter selectivity + join cardinality estimation
4. APIs for easily rewriting plans, such as the TreeNode API and reordering joins

This combination of features, along with custom optimizer passes, lets users customize the behavior to their use case, such as custom indexes like uWheel and materialized views.

The rationale for including only a basic optimizer is that any particular set of heuristics and cost model is unlikely to work well for the wide variety of DataFusion users because they have different tradeoffs.

For example, some users may always have access to adequate resources, want the fastest query execution, and are willing to tolerate runtime errors or a performance cliff when there is insufficient memory. Other users, however, may be willing to accept a slower maximum performance in return for a more predictable performance when running in a resource-constrained environment. This approach is not universally agreed. One of us has previously argued the case for specialized optimizers in a more academic paper, and the topic comes up regularly in the DataFusion community (e.g., this recent comment).

Note: We are actively improving this part of the code to help people write their own optimizers (🎣 come help us define and implement it!)

To summarize

Optimizers are awesome, and we hope these two posts have demystified what they are and how they are implemented in industrial systems. Like many modern query engine designs, the common techniques are well known, though require substantial effort to get right. DataFusion’s industrial strength optimizers can and do serve many real-world systems well and we expect that number to grow over time.

We also think DataFusion provides interesting opportunities for optimizer research. As we discussed, there are still unsolved problems, such as optimal join ordering. Experiments in papers often use academic systems or modify optimizers in open source but tightly integrated systems (for example, the recent POLARs paper uses DuckDB). However, this style means the research is constrained to the set of heuristics and structure provided by those particular systems. Hopefully DataFusion’s documentation, newly citeable SIGMOD paper, and modular design will encourage more broadly applicable research in this area.

And finally, as always, if you are interested in working on query engines and learning more about how they are designed and implemented, please join our community. We welcome first-time contributors as well as long-time participants to the fun of building a database together.

1. See Unnesting Arbitrary Queries from Neumann and Kemper for a more academic treatment.

2. One of my favorite terms I learned from Andy Pavlo’s CMU online lectures.
